The AI SDK owns the model/tool conversation.
streamText, tool schemas, tool execution, step boundaries, and stopWhen form the native loop. Snappy consumes the SDK’s typed stream instead of parsing an invented protocol. [AI1]
Architecture report · July 2026

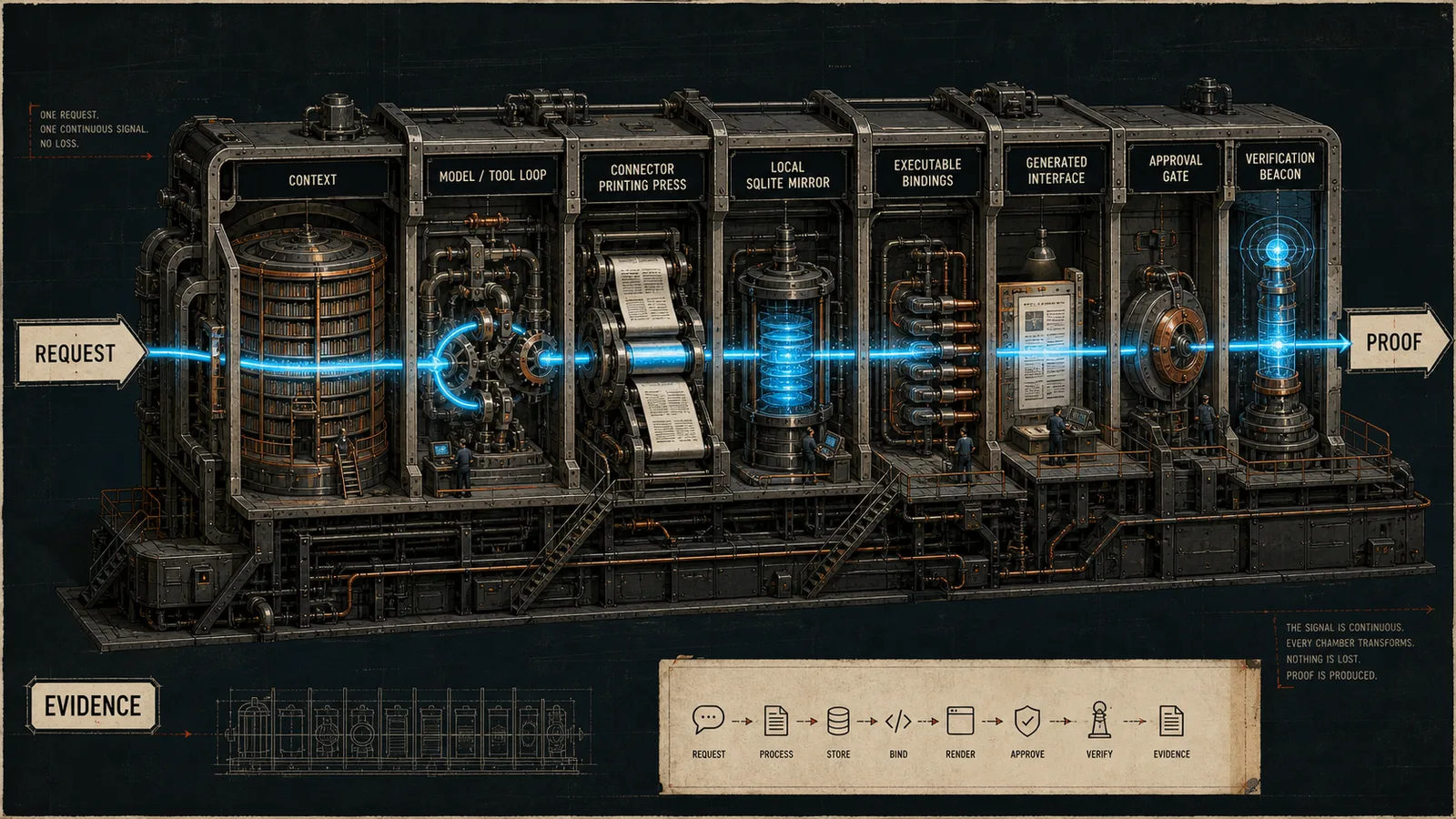

The harness is a truth-preserving machine.
Snappy’s core invention is not a clever prompt, a tool catalog, or an OpenUI renderer. It is the causal chain that turns arbitrary language into grounded evidence, executable capability, governed interface state, and a result whose status is never stronger than its proof.
One front door. One provider-neutral loop. One connector road. One render exit. Many explicit truth states.
5resident product tools
1external-data road
24kcharacter cap per connector result
8+distinct outcome states
01 / INGRESS

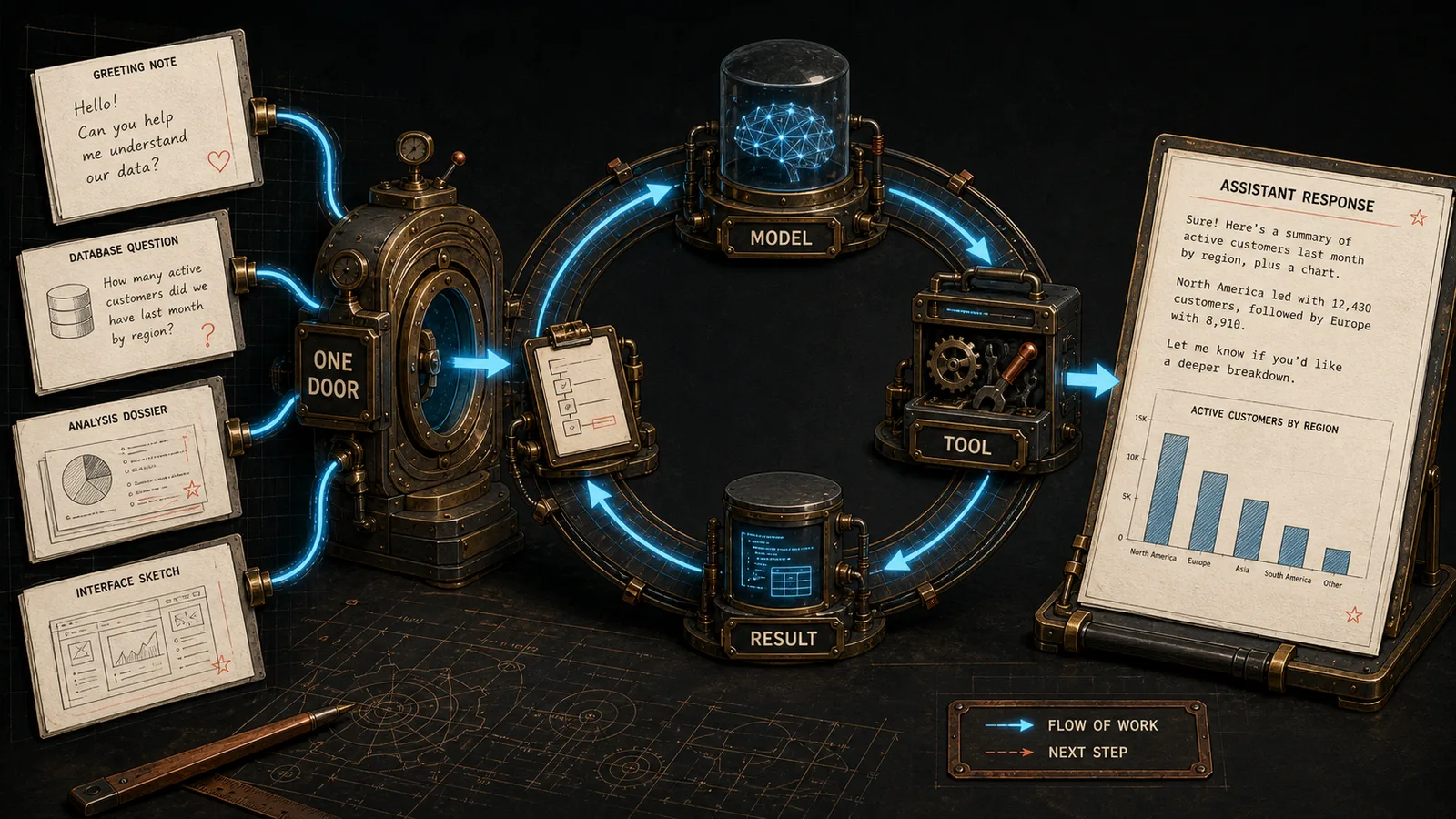

Different asks enter the same road.
A greeting, a database question, a cross-source analysis, and a request for a live interface do not get separate regex lanes. Disclosure depth changes; the harness does not.
User languageNo tool syntax required.
Prompt frameStable law plus live reality.
streamTextProvider-neutral SDK loop.
Tool ledgerCalls and results retained.
ComposeOptional executable surface.
FinalizeTerminal truth, not vibes.
PersistOne assistant turn owns prose + tool part.
Every stream part becomes product state.
Text deltas, reasoning, tool calls, tool results, errors, denials, approvals, step starts, and step finishes are translated into the application’s event and transcript model by one adapter. [H1]
String intent routing is structurally forbidden.
The harness lint rejects regex intent lanes because they make demos look smart while arbitrary language fails. The model chooses; schemas and runtime boundaries constrain. [H2]
Hard-won lesson
Do not write a second agent loop around an SDK that already owns the loop. Put product semantics at the tool and lifecycle boundaries, where they can be typed, tested, and observed.
02 / ATTENTION

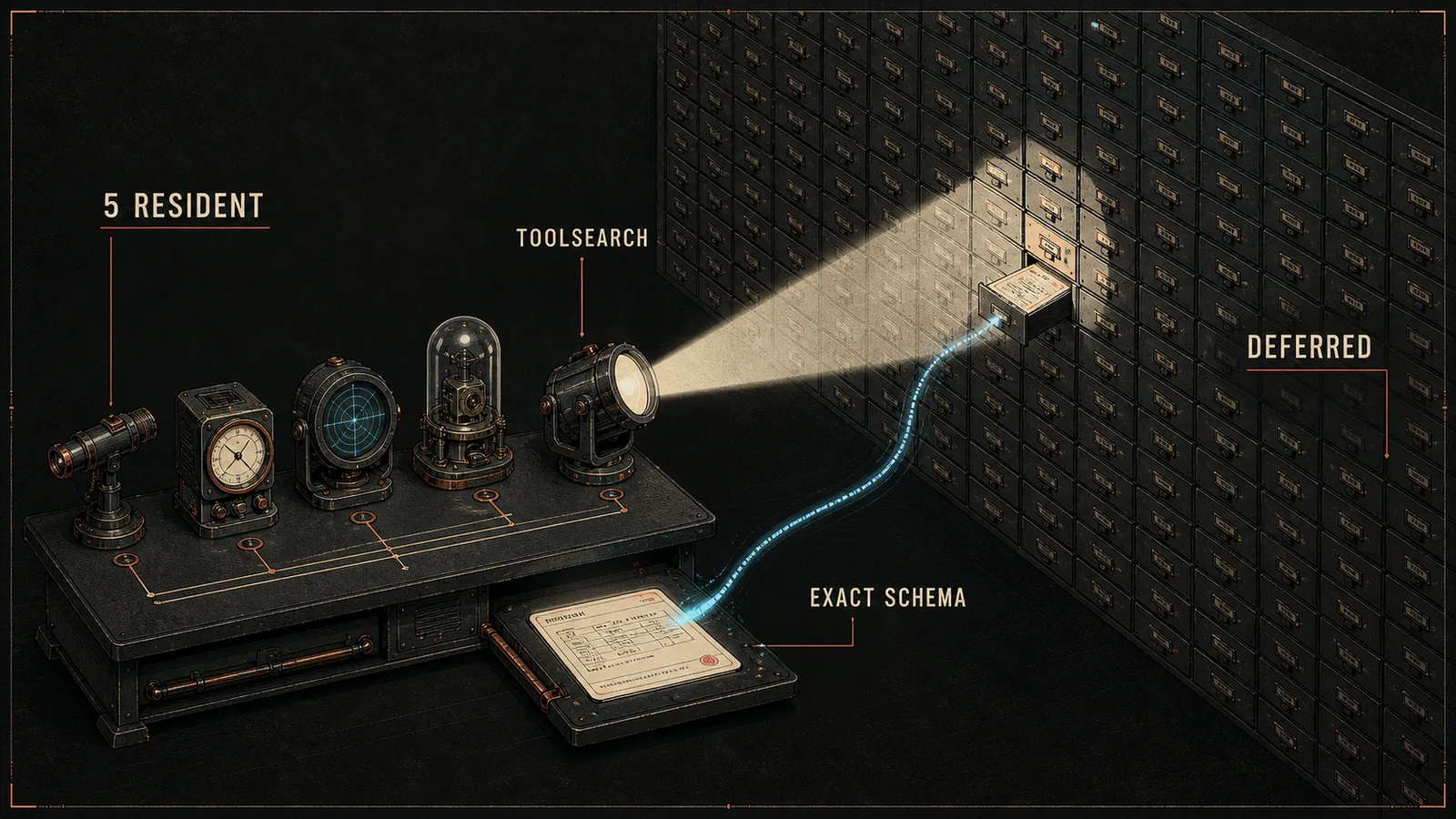

Context is an operating budget.
The resident surface is deliberately tiny. The model sees five stable product concepts; the long tail arrives only after it asks for an exact capability.
Typed choice and clarification surface.
Pulls exact deferred schemas into a later step.
Fetches the OpenUI vocabulary when shape detail matters.
The sole connected-source read road.
The sole OpenUI render exit.
More than 100 tools lived in every prompt.
Coverage was high, but every turn paid the catalog cost and attention diluted.
Mode and slug filters tried to predict relevance.
They reduced payload, but the router had to guess before the model had reasoned.
Stable nouns stay resident; exact verbs are retrieved.
The model gets a small semantic map and fetches schemas by need. The old 182 definitions remain searchable, not resident. [L1]
resident = [AskUserQuestion, ToolSearch, ListComponents,
RunConnectorCommand, ComposeUI]
ToolSearch("select:invoke_mutation")
→ attaches the exact callable schema for the next SDK step
The key implementation detail is timing: a deferred schema is inserted into the callable tool map only after ToolSearch returns, before the next SDK step selects a tool. [H3] [H1]
03 / SOURCE TRUTH

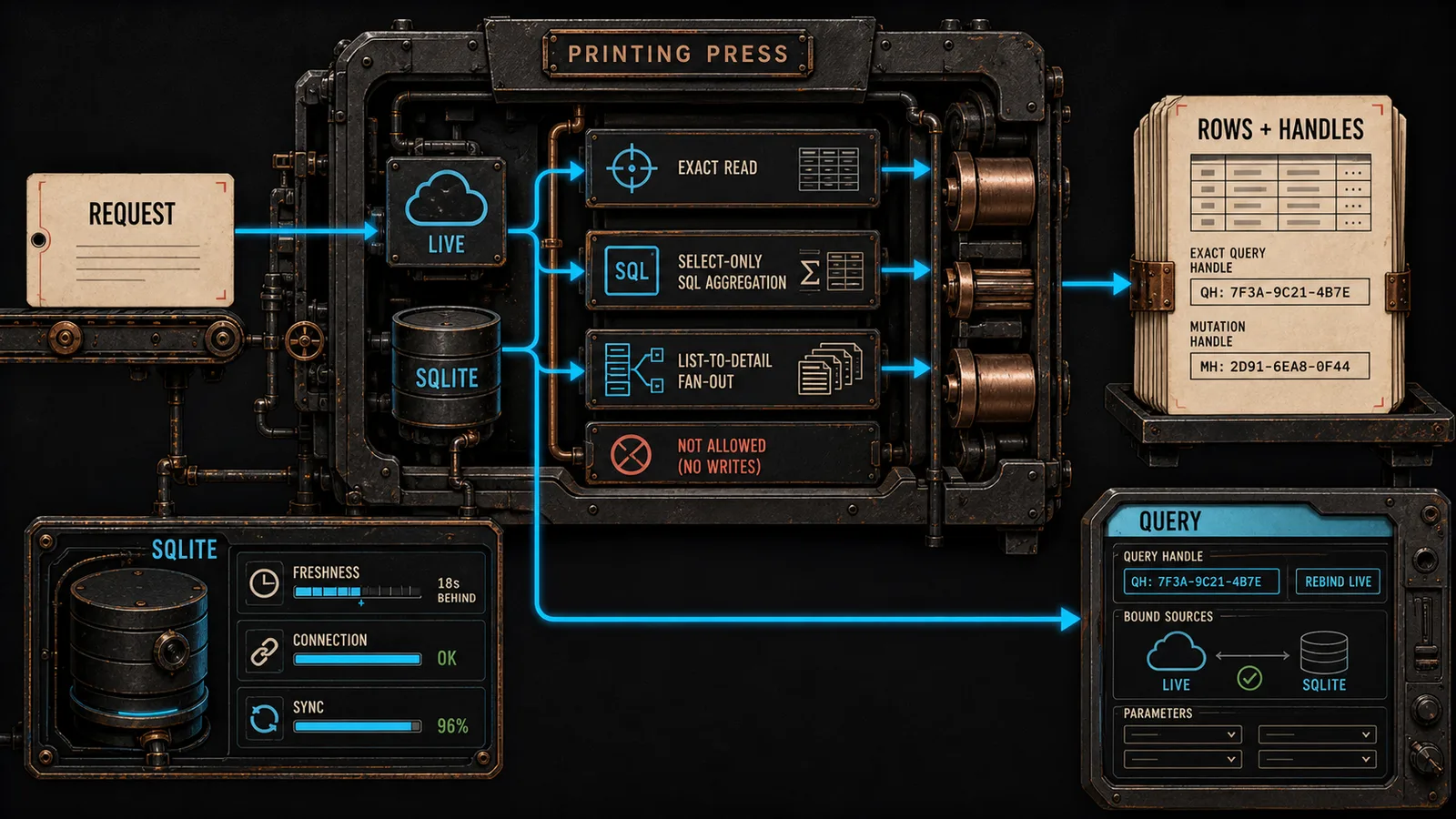

RunConnectorCommand grounds before ComposeUI paints.
The model is allowed to judge what the user means. It is not allowed to invent the connector operation, row shape, source identity, or executable handle.
Natural language crosses once.
{connector, request, limit?} is compact enough to stay resident. Ready connector slugs can be enum-constrained once the boot snapshot is warm.
Resolution is a hint, not a gate.
An exact resolved read executes directly. Thin ID-only lists can fan out to parallel detail reads. No match can still enter a bounded focused loop.
Live and local are explicit source modes.
Printing Press owns auto selection. Mirror-first sources can answer instantly while a scheduled live sync runs in the background.
The result is rows plus capability.
Each operation keeps arguments, served fields, source state, query handle, query contract, and eligible mutation contracts.
RunConnectorCommand({ connector: "calendar", request: "What conflicts next week?" })
→ {
rows: [...bounded evidence...],
operation_ledger: [{ command, args, served_fields, source }],
registered_query_handles: ["calendar_events"],
query_contracts: [...], mutation_contracts: [...],
mirror_snapshot: { freshness, credential_state, serving_decision }
}
Direct exact read
If which resolves a complete operation, it runs immediately—no inner model tax.
SELECT-only SQL
Counts, filters, aggregations, and compound conditions can run against the connector’s generated SQLite store when the binary declares the verb.
List → detail fan-out
When list rows are only identifiers, the focused loop can fetch bounded details in parallel rather than asking ComposeUI to hallucinate them.
Two-time grounding
Rows ground model judgment at composition time. The exact Query() handle executes again at render time. The source-binding contract proves that preview and live binding refer to the same operation, arguments, source, and served fields.
Primary implementation: RunConnectorCommand boundary, focused Printing Press loop, result contracts, and the Printing Press generator.
04 / SURFACE

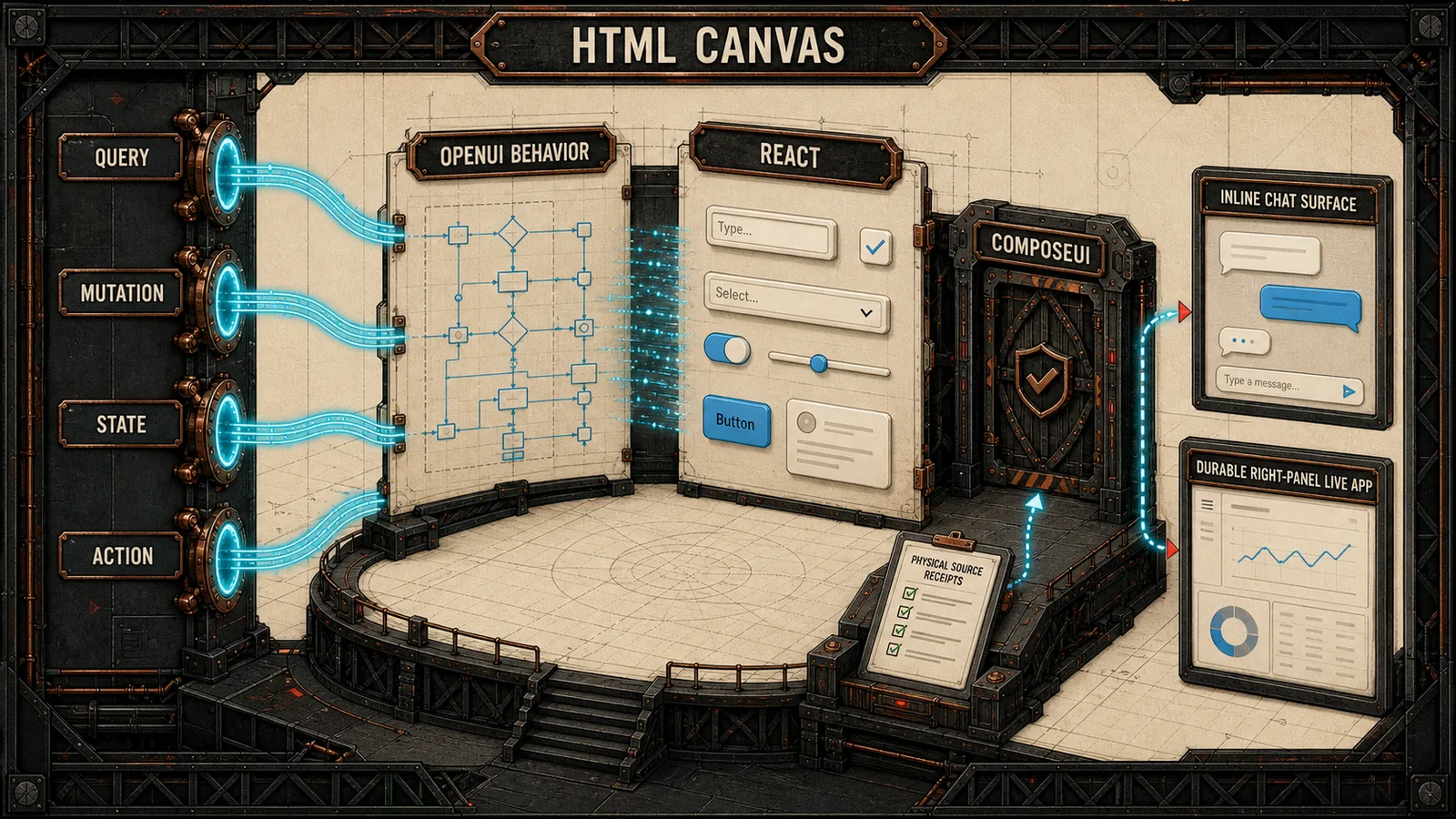

ComposeUI is one guarded render exit.
OpenUI supplies the language and renderer. Snappy turns that renderer into a product boundary that understands evidence, identity, placement, durability, and effects.
Library → prompt → Lang → parser → Renderer.
A component library defines the allowed vocabulary. Its schema produces model instructions. Streaming Lang is parsed progressively, then mapped to React. toolProvider executes Query() and Mutation() at runtime. [OU1] [OU2]
HTML-first art direction plus governed capability.
One authored Html(html, data) canvas can own the ambitious composition. HtmlMount portals native OpenUI children into named slots. No second JavaScript runtime is given to the model. [H4]
events = Query("calendar_events", { range: "next_week" }, { rows: [] })
create = Mutation("calendar_create", { title: $title, start: $start })
save = Button("Stage event", Action([@Run(create)]))
root = Html("<main>...{{#each events}}...{{/each}}...<div data-mount='save'/></main>",
{ events: events.rows },
[HtmlMount("save", save)])
Semantic validation
Syntax is insufficient. Source-backed claims must bind served fields; multi-source asks must visibly synthesize; rootless patches need an existing program; unsupported runtime JavaScript is rejected.
Identity and placement
An answer can stay inline, open in a detailed panel, or—when deliberately named with app_slug and live-app kind—become a durable right-panel application.
One assistant message
Prose and the ComposeUI tool part remain one assistant turn. A previous sentinel plus separate surface message created duplicate rendering and prose loss on reload; it was deleted.
The central boundary is harness-tools-compose-inline.ts; product-semantic checks live in tool-registry-validation.ts; the runtime provider is openui-provider.ts.

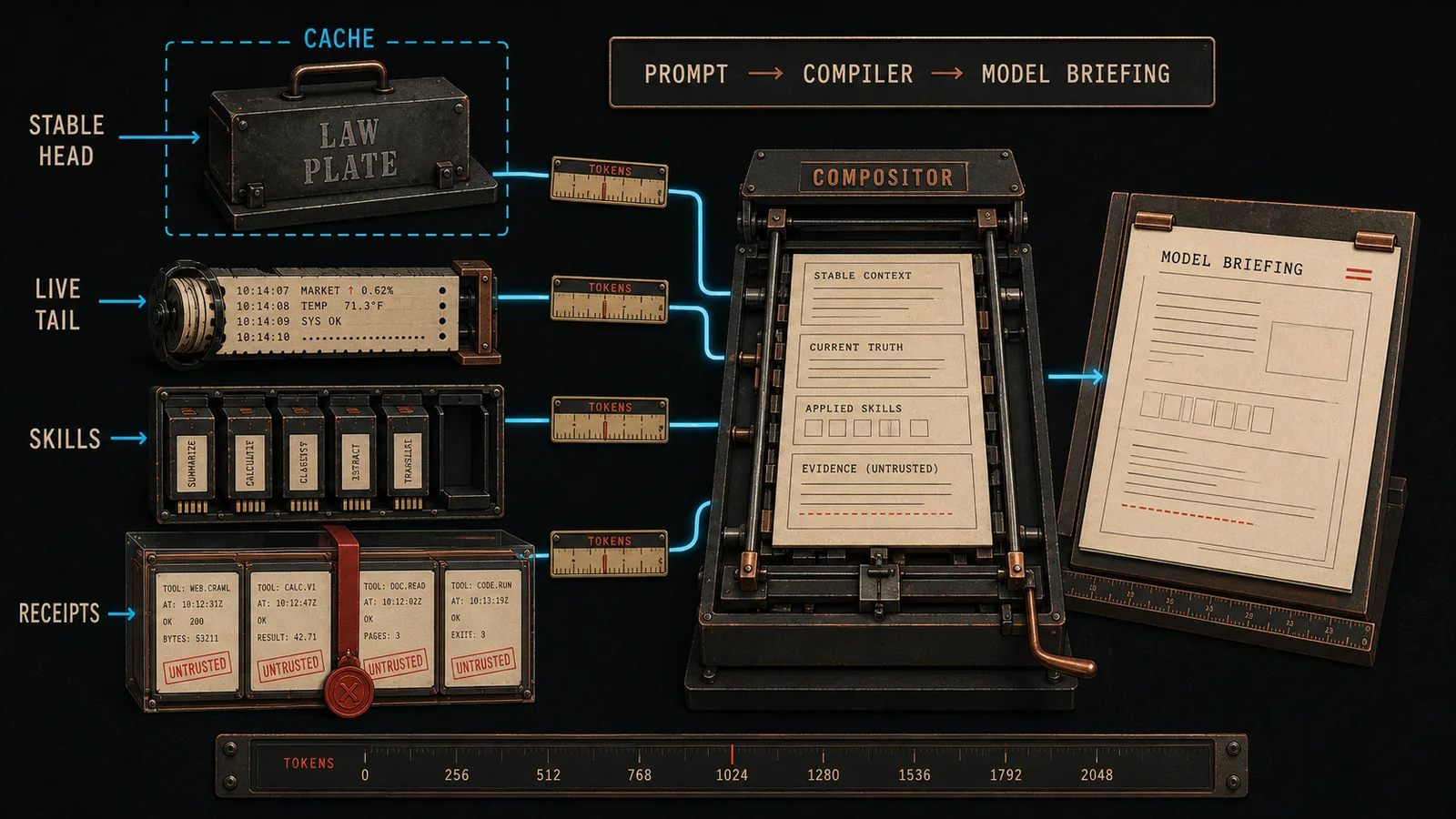

05 / PROMPT COMPILER
There is no magical system prompt.
The runtime compiles instruction ownership, cache placement, current reality, relevant skills, active object state, and tool evidence into a decision-local frame.
Byte-stable law
Identity, tool usage law, grammar, and enduring product rules are separated so provider prompt caching can reuse them safely.
Reality every turn
Local time, ready connector names, internal query map, grants, active artifact identity, and response controls are rebuilt unconditionally.
Deferred canonical bodies
Semantic loaders select a skill, then digest markers prove which exact file body entered context. ToolSearch can pull runtime Skill capability into the same loop.
Typed and untrusted
Tool results are remembered with caps and wrappers. They are evidence for the task, never instructions allowed to rewrite system law.
The split-brain failure
Live context was once skipped only when a profile-bearing request arrived—the exact shape sent by the real app. Curl probes saw connector names; user turns did not. Every isolated test passed while production failed. The repair was architectural: live reality now builds unconditionally.
- Ownerdispatch-turn-system-prompt.ts splits the cacheable head from the variable tail.
- Realitydispatch-turn-prompt-context.ts assembles live maps every turn.
- Skillsdispatch-turn-skill-loader-context.ts injects selected loaders and digests.
- Memoryprompt-frame.ts owns active-surface context, tool-result caps, and untrusted text.
- Auditprompt-owner-breakdown.ts exposes which subsystem spent the context.
06 / EPISTEMIC STATE

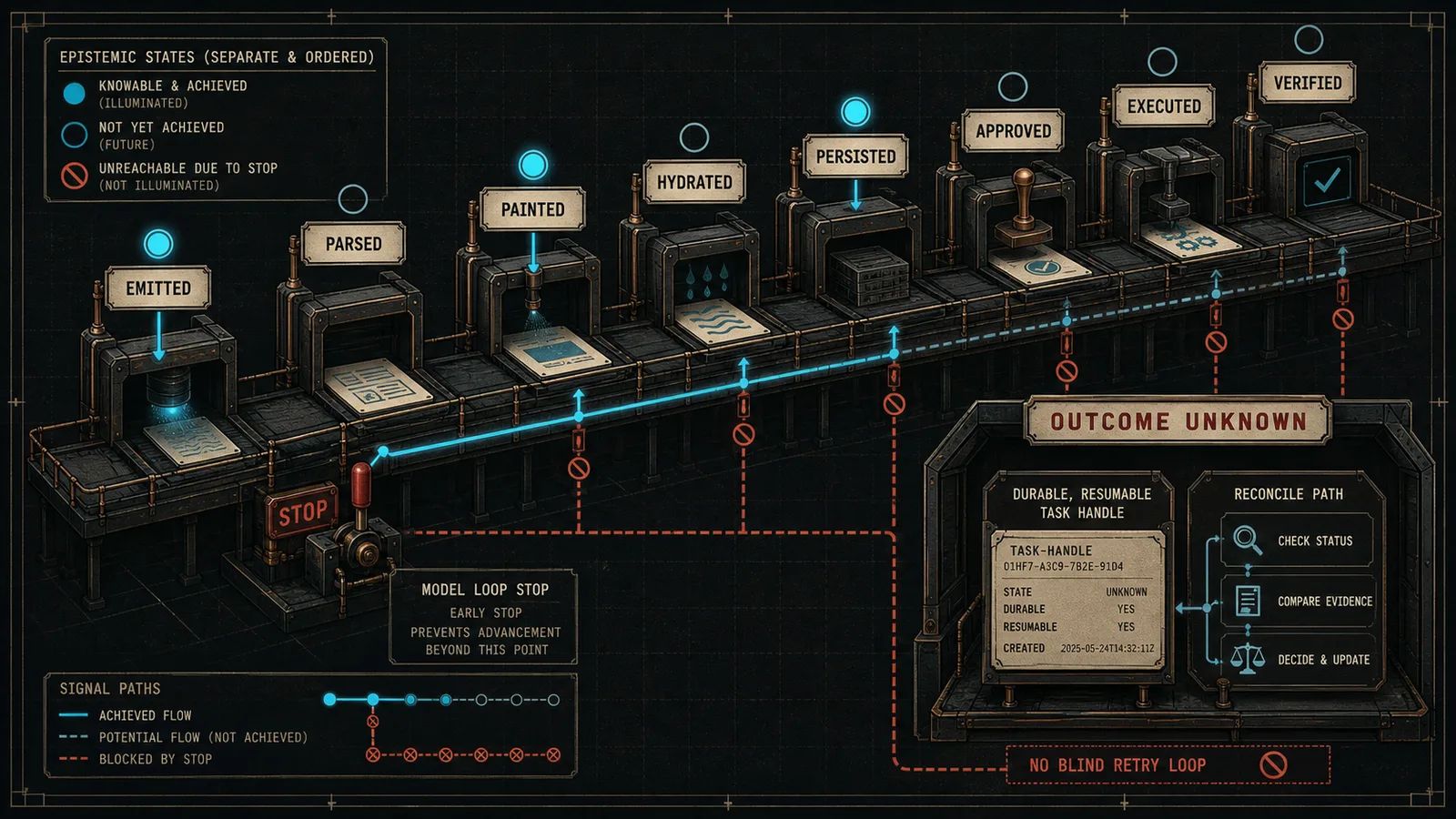

Loop stop is not product success.
A tool result can reach the wire while the browser has not painted it. A write can return while its remote effect is unknown. Snappy names these states instead of flattening them into “done.”
Emitted
Parsed
Painted
Hydrated
Persisted
Approved
Executed
Verified
stopWhen decides whether generation continues.
It is about orchestration: step count, terminal tool shape, or another stop predicate. The Vercel AI SDK can feed tool results into later model steps. [AI2]
The finalizer uses the same step ledger.
Terminal-surface detection and onStepFinish read the same results. A previous two-detector split called composed surfaces empty; one ledger now owns the fact.
Never retry an ambiguous effect.
A timeout after dispatch becomes execution_outcome_unknown. Durable task identity supports poll, input, resume, or reconcile—never duplicate execution.
Static surface law
A static report with no Query() or entity binding owes no paint acknowledgement. Waiting for one sentenced correctly rendered static work to a false timeout. Paint proof is required only where live binding actually needs it.
See surface-result-detectors.ts, ai-sdk-terminal-status.ts, and execute-governed-mutation.ts.

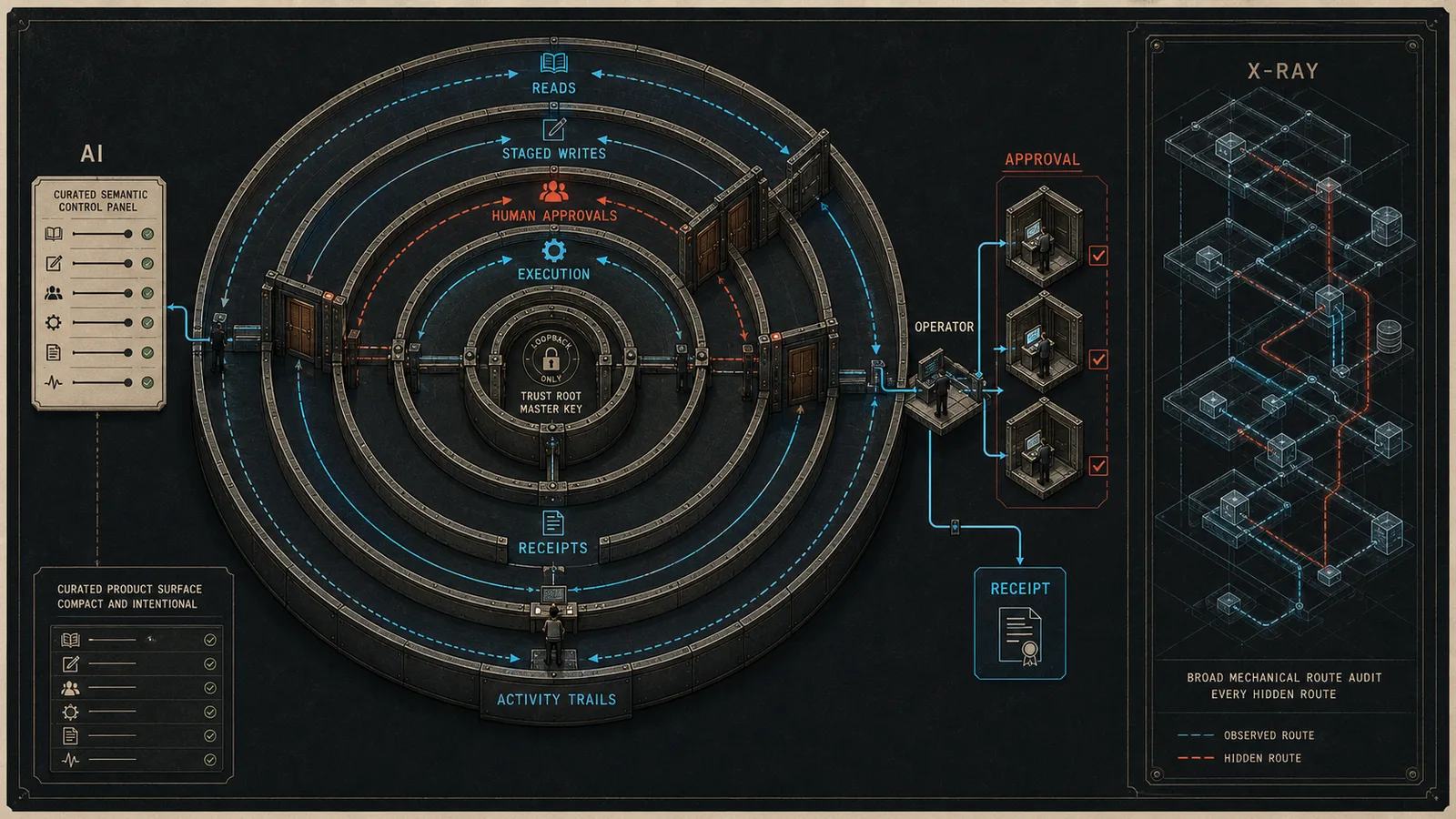

07 / AUTHORITY
Capability and authority are different axes.
The product can know how to perform an operation without having permission to do it. Snappy makes that separation visible to humans and other AIs.
A small semantic product surface
Ask naturally, read governed connector data, request grants, stage actions, inspect approvals, render OpenUI, open artifacts, and read Activity—without guessing local routes.
A distinct operator session
The loopback MCP developer surface may mint and forward an operator session from the single-user trust root. A remote hub never holds that root.
Every door must declare itself
The generated one-to-one wrapper is intentionally broad. It forces each local HTTP route to state object, action, access class, mode, grant, receipt, params, result, and proof.
| Mode | What it means | Required evidence |
|---|---|---|
| Read | Source or internal state may be observed inside granted scope. | Grant decision, source identity, rows/result, Activity event where applicable. |
| Staged write | The capability can be declared and prepared, but no remote effect occurs yet. | Exact mutation, schema-valid args, risk/approval policy, durable approval request. |
| Approved execution | A human-plane decision authorizes one bounded effect. | Approval identity, idempotency, execution receipt, outcome state. |
| Verified | A fresh read or provider proof confirms the promised effect. | Read-after-write link or explicit verification tier. |
The forcing function lives in mcp-capability-registry.ts. It is not the user-facing story; it is the x-ray that prevents hidden unclassified side doors.
08 / OPERATIONS

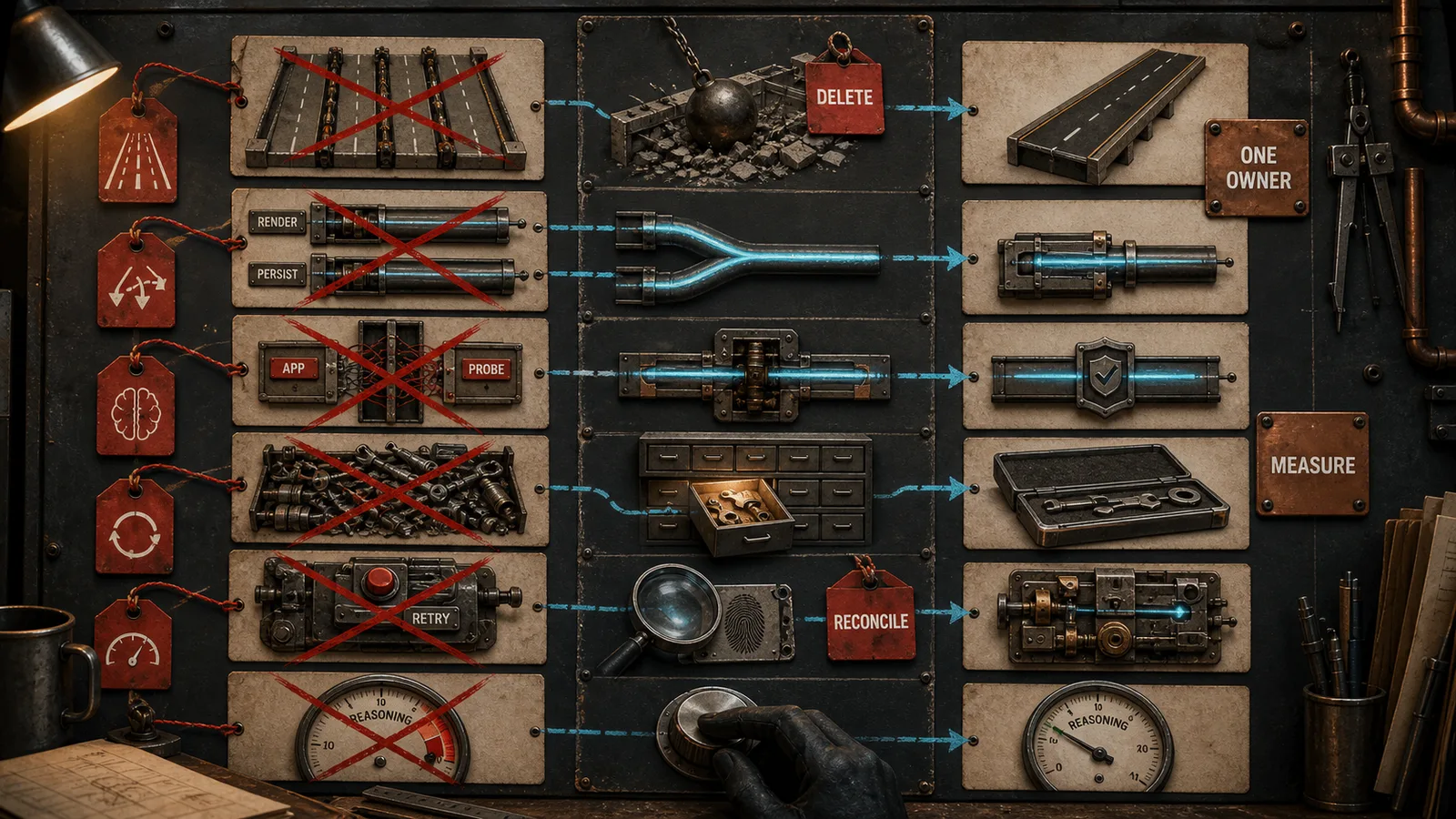

Failures became laws, not longer prompts.
The deepest engineering pattern is how the system was built: observe a real failure, name the violated invariant, place one owner at the earliest enforceable boundary, add a red proof, and delete the superseded road.
Fabrication detectors
Marking invented content as fake was hiding the failure. Factual data must bind a served field or be omitted.
Fallback connector substitution
A generic feed cannot masquerade as the requested operation. Wrong-resource or low-confidence resolution pauses honestly.
Resident phone book
A late instruction could not beat 19.6k of familiar component signatures. Disclosure moved to the decision moment.
High reasoning by default
Compact OpenLang did not need 1,500 hidden reasoning tokens per step. Auto now resolves low; explicit operator choice wins.
Two surface owners
Sentinel text plus a separate surface message duplicated renders and lost prose. One SDK-native assistant message owns both.
Stop detector split
Stop and final truth now inspect the same step results instead of grading two projections of one event.
Runtime-owner trap
A green probe against packaged :3147 does not prove source HEAD. /deploy-truth must identify owner and commit before and after.
App/probe split brain
When curl and the app disagree, compare prompt block sizes and request shape before blaming the model.
Bound the evidence
Four 60k connector results exhausted provider input after the surface already existed. Each result is now capped at 24k characters.
Debugging doctrine
When an issue resists the first probe, instrument the whole suspect chain with roughly ten numbered logs, drive the real flow once, and find the missing or wrong-numbered event. Remove the logs after the invariant is restored.
09 / DIFFERENTIATION

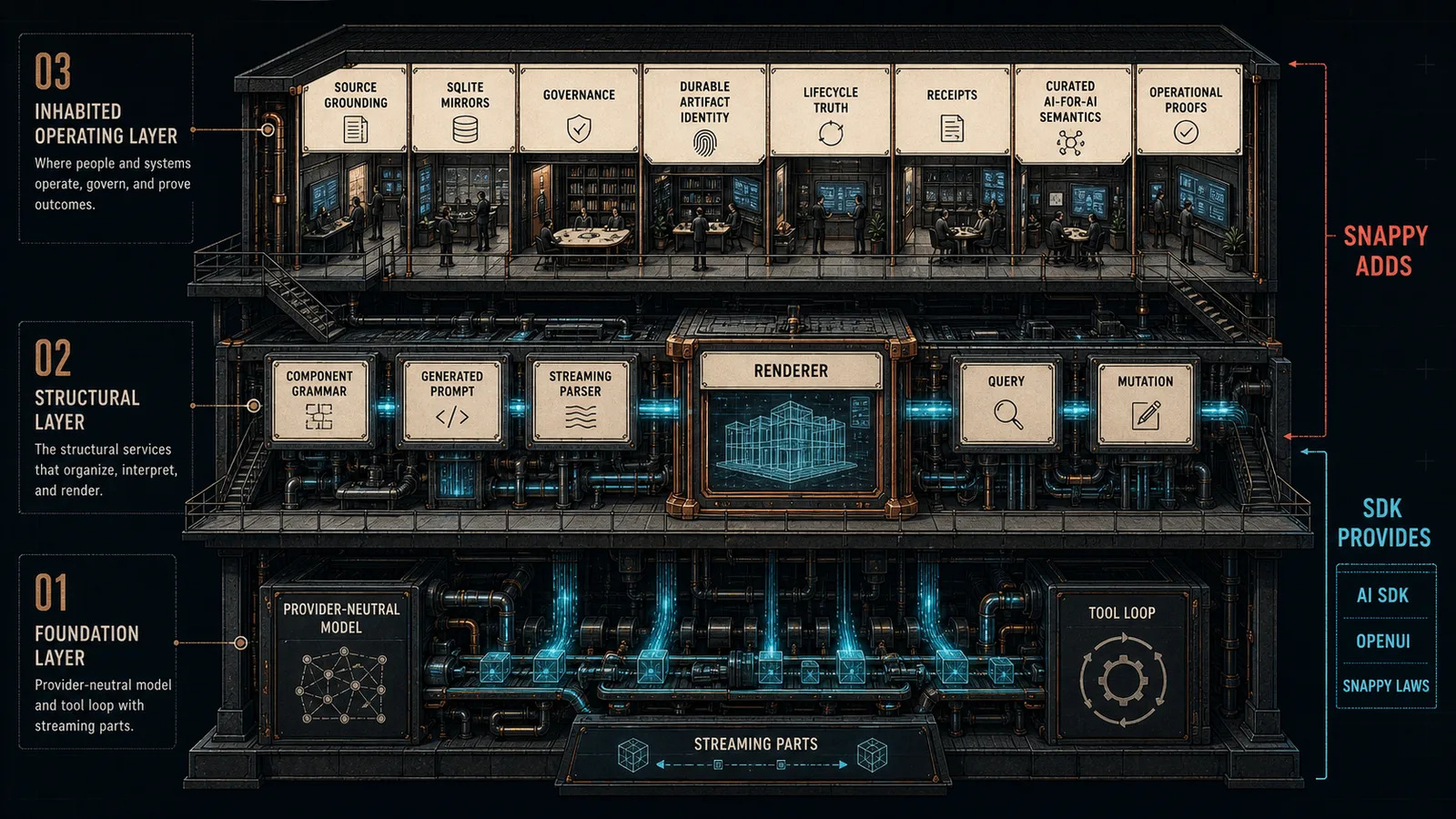

The SDKs provide engines. Snappy adds a society.
Nothing here diminishes the SDKs. The differentiation is precise: Snappy keeps their primitives, then adds product laws for truth, authority, source time, durable objects, and AI-operable governance.
| Concern | Vercel AI SDK | OpenUI | Snappy harness |
|---|---|---|---|
| Model execution | Provider-neutral generation, typed tools, automatic multi-step loop, streaming parts, stop predicates. | Consumes model-produced Lang; does not own the provider loop. | Maps one native SDK loop into product events, tool ledger, progress, recovery, and terminal truth. |
| UI generation | Transports text, data, files, reasoning, and tool states; UI shape is application-owned. | Library contract, prompt generator, streaming parser, Renderer, state, actions, Query/Mutation provider. | HTML-first ambitious canvases, semantic validation, source-binding receipts, placement, identity, and durable Live Apps. |
| Connected data | Applications define tools and execution. | toolProvider invokes named Query/Mutation functions. | Printing Press mints semantic connectors, SQLite mirrors, operation ledgers, bounded rows, exact handles, freshness, and connection truth. |
| Authority | Tool approval stream parts exist; policy remains application-owned. | Mutation declares executable data capability; application owns authorization. | Grants, staged writes, operator plane, human approvals, idempotency, receipts, reconcile, and verification tiers. |
| Durability | Message and persistence strategy is application-owned. | Artifacts expose preview and detailed views; storage remains application integration. | Artifact identity, versions, exact Lang body, bindings, app slug, surface kind, patch lineage, and fail-closed explicit saves. |
| Success | Generation and step finish states. | Parse/render hooks and error callbacks. | Separate emitted, parsed, painted, hydrated, persisted, approved, executed, verified, and outcome-unknown states. |
Unique causal chain
API or traffic → Printing Press capability → bounded evidence + exact handle → model judgment → OpenUI program → product-semantic validation → runtime binding → governed action → durable receipt → fresh verification. Each arrow is owned and testable.
10 / MANIFESTO

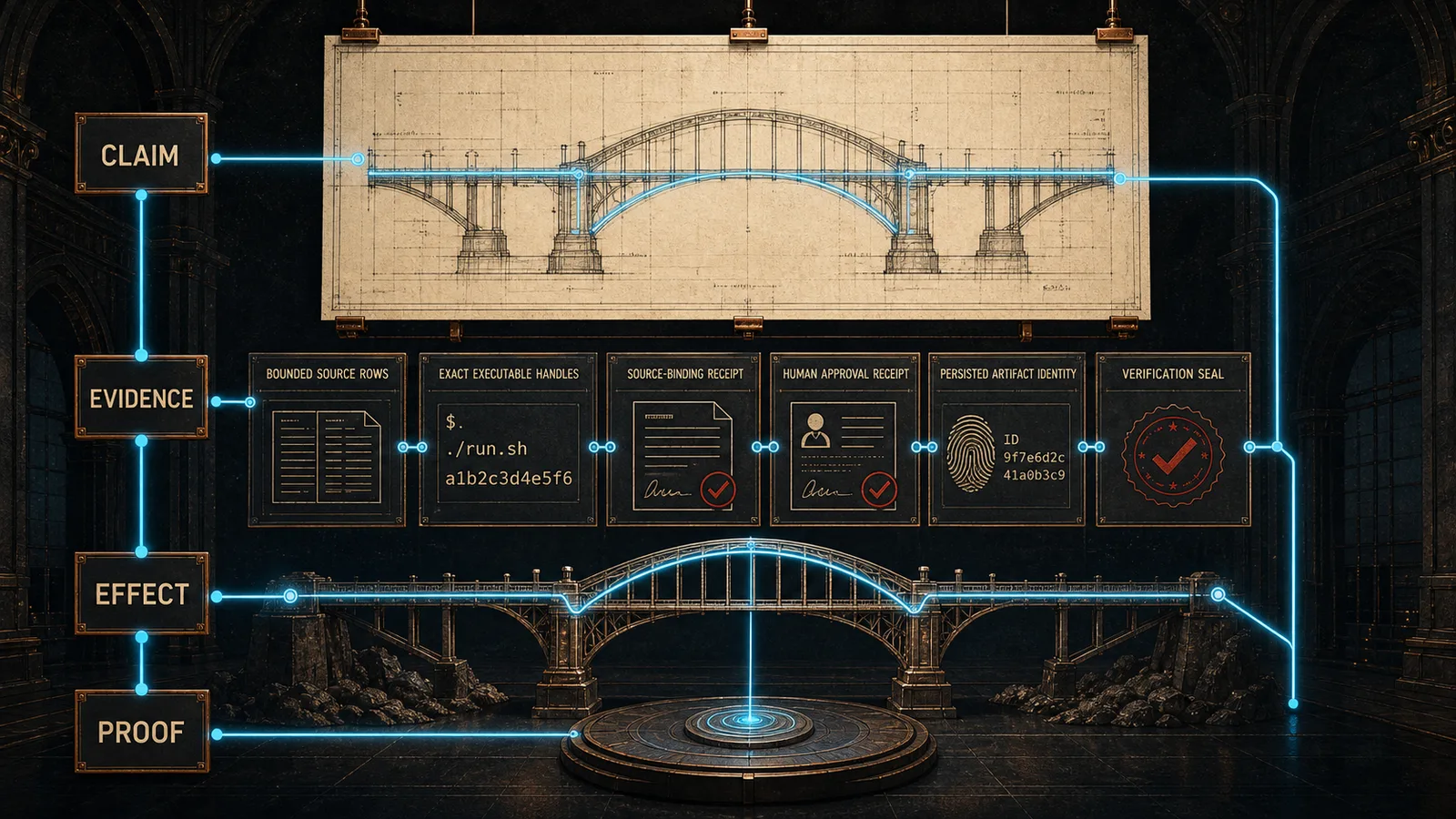

A generated interface is a set of executable claims.
Its visual confidence should never exceed the confidence of the evidence, authority, identity, and lifecycle state underneath it.
The interface is not the answer. It is the most legible proof the system can currently support.
Let the model reconcile ambiguity and synthesize meaning.
Let the boundary own source names, object IDs, permissions, and exact executable handles.
Say whether data was live, mirrored, stale, empty, syncing, or disconnected.
Separate capability declaration, gesture-time staging, human approval, execution, and verification.
For every fact—message, surface, artifact, receipt, verdict—choose one canonical writer and reader.
When an architecture can only be made truthful by removing a road, remove it.

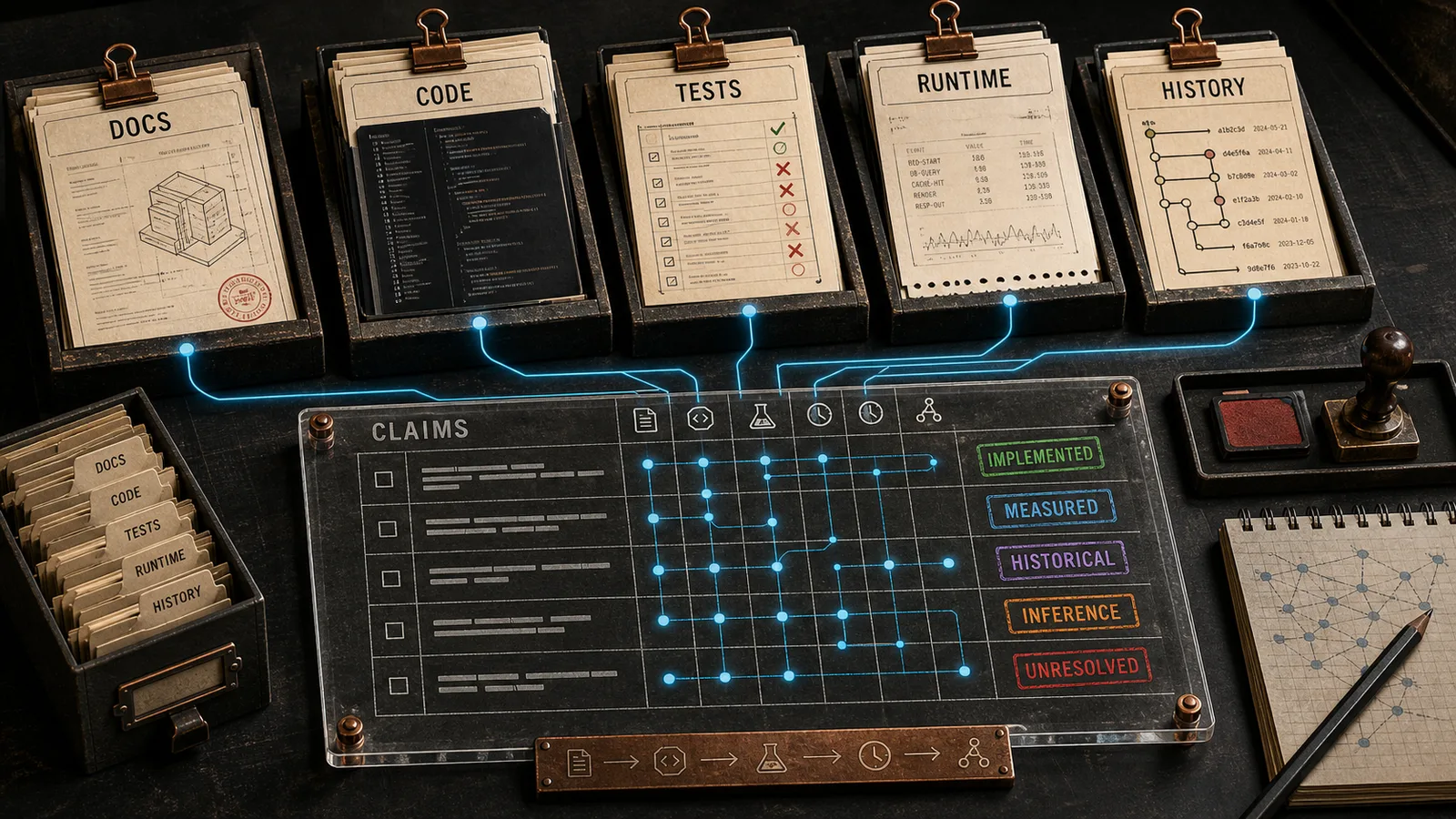

11 / PROVENANCE
Every claim has an evidence class.
Current implementation, measured production failure, historical lineage, inference, and target state are not interchangeable.
ImplementedMeasuredHistoricalInferenceUnresolved
